Wire Cable Extruder Screw Barrel
● Min. Order (MOQ): 1 screw + 1 barrel / Set
● SPVC, PVC wire cable sheaths
● Low smoke and halogen free, photovoltaic wire cable
● PE, cross-linked PE wire cable
● TPU, TPE thermoplastic wire cable extruder screw barrel
● Fluoroplastics wire cable, physical foam wire cable, Silicon rubber wire cable
You Need Better Wire Cable Extruder Screw Barrel at Good Price!
- Product Detail
HUACHEN Screw has been a good producer of wire cable extruder screw barrel in Zhoushan Jintang since 2005. With many years of experience designing and processing resin recycling extruder screw barrels, HUACHEN Screw can provide its customers with a wide range of services, including drawing rebuilding, design, modification, and customization. Our company has also successfully exported and supplied screw barrels to customers worldwide.
>>Learn more about our company
Wire cable extruder screw barrel

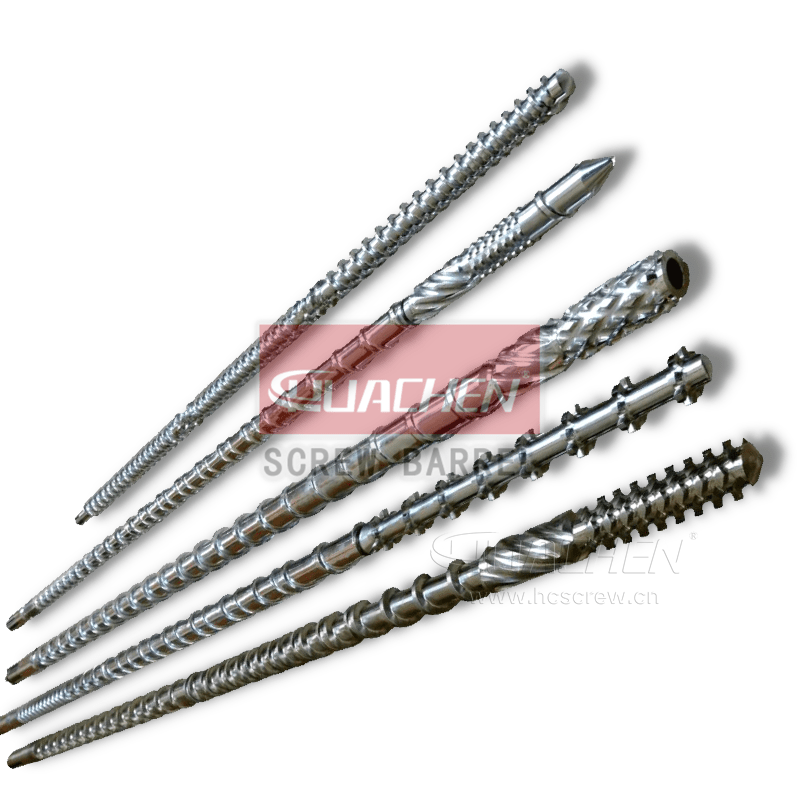

1. The wire cable extruder screws can be supplied as conventional single screw or as a new combination structure. The screw designs are available in a variety of barrier screw, Maddock screw, and pineapple screw. High performance screws are designed for specific applications and can produce 15-20% more than conventional wire cable extruder screw barrels. Better plasticizing level.
2. Our screw barrels are made from premium quality 38CrMoAlA steel, which has been tempered and nitrided. Wear-prone parts of the screw receive bimetallic alloy overlay treatment to increase their service life.
3. Linear stability. For example, the newly designed screw barrels for wire cable extruders produce sheathing of 9-10 mm OD after cladding, with dimensional progress and haul-off speeds that meet international standards.
4. A high degree of adaptability. PVC and HDPE raw materials can be produced with a single screw, reducing costs. We can upgrade the screw barrel structure of old wire cable extruders that cannot meet production requirements and need to improve performance. With the help of an optimised screw structure, the plasticizing performance can be improved without changing the other configurations of the machine.
Application
1. SPVC or high efficiency PVC wire cable extruder screw barrel： cable with PVC sheathing, conduit with PVC sheathing, flexible PVC sheathing pipe.
2. Low smoke and halogen free, photovoltaic wire cable extruder screw barrel
3. PE, cross-linked PE wire cable extruder screw barrel
4. TPU, TPE thermoplastic wire cable extruder screw barrel
5. Single screw barrel for high temperature fluoroplastics wire cable
6. Single screw barrel for physical foam wire cable
7. Silicon rubber wire cable hot and cold feeding screw barrel
Manufacture of wire cable extruder single screw barrel
| No. | Screw barrel model | Motor power(km) Screw rotating speed (rpm) | SPVC output | Applications | No. | Screw barrel model | Motor power(km) Screw rotating speed (rpm) | SPVC output | Applications |
|---|---|---|---|---|---|---|---|---|---|
| 1 | HCS30/25 | DC 7.5kw 150rpm | 25 | sheath pipe | 9 | HCS65/30 | DC 37kw 120rpm | 120 | fiber optic cable |
| 2 | HCS30/30 | DC 7.5kw 150rpm | 25 | fiber optic cable | 10 | HCS90/20 | DC 55kw 41.7rpm | 150-outer shield material | cross-linked wire cable |
| 3 | HCS45/25 | DC 15kw 150rpm | 50 | sheath pipe | 11 | HCS90/35 | DC 75kw 95rpm | 330 | sheath pipe |
| 4 | HCS45/30 | DC 15kw 150rpm | 50 | fiber optic cable | 12 | HCS90/30 | DC 90kw 95rpm | 350 | sheath pipe |
| 5 | HCS50/25 | DC 22kw 120rpm | 70 | sheath pipe | 13 | HCS120/25 | DC 132kw 75rpm | 500 | sheath pipe |
| 6 | HCS50/30 | DC 22kw 120rpm | 70 | fiber optic cable | 14 | HCS120/30 | DC 132kw 75rpm | 550 | sheath pipe |
| 7 | HCS65/20 | DC 30kw 46.9rpm | 60-Inner shield material | cross-linked wire cable | 15 | HCS150/25 | DC 132kw 40rpm | 350-cross linked materials | cross-linked wire cable |
| 8 | HCS65/25 | DC 37kw 120rpm | 120 | sheath pipe | 16 | HCS150/30 | DC 185kw 75rpm | 850 | sheath pipe |
Parameters
1) Single screw diameter available: 30 mm to 200 mm. 2) Single screw L/D ratio available: 25 to 30. 3) Screw max. length: ≤10000 mm. 4) Barrel max. out diameter: ≤350 mm. 5) Based materials: Premium 38CrMoAlA steel. 6) Plasma nitriding surface hardness: ≥HV1000. 7) Plasma nitriding depth: 0.7 mm. 9) Nitriding fragility: less than Grade I. 10) Surface Roughness: Ra 0.4 μm. 11) Screw Linearity: ≤ 0.015 mm. 12) Alloy depth: 2-4 mm. 13) Alloy surface hardness: ≥ HRC 61
>>Learn more about our wire cable extruder screw barrel parameters
The ultimate solution for anti-wear and anti-tear
1. Alloy steel of high strength, tempered, and nitride.
2. bimetallic alloy screw: Plasma alloy coating spraying with nickel-based and molybdenum-based alloys on vulnerable screw parts with a thickness of 1 to 1.5 mm. Effectively provide 1.5 times longer service life.
3. screw with hard chrome plating as an optional process.
4. bimetallic barrel: grooved feed sleeve process
5. bimetallic barrel: centrifugal casting alloy base process.
>>Learn more about our bimetallic alloy screw barrel treatments
Production time
Complete set of wire cable extruder screw barrels within 28-35 days depending on the complexity of the part.
We have a wide selection at good prices to help you get creative. The wire cable extruder screw barrel for Sale is guaranteed to be of high quality. We are the China Origin Factory of wire cable extruder screw barrels. If you have any questions, please feel free to contact us.
